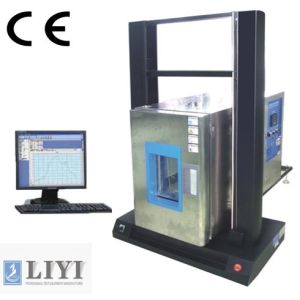

High And Low Temperature Universal Testing Machine For Adhesive Material
Brief Introduction
This machine combines high-low temperature tester with peel strength tester wonderfully. It
can restrain the error brought by changing environment between testing process.
Setting up different fixtures can test 180&90 degree peeling strength,
separating force,etc. for the adhesive material in the high-low temperature environment. This machine
can be changed into programmable temperature&humidity tester according to your needs.
Specifications:
| Capacity | 2,5,10,20,50,100,200,500,1000kg |
| Choosing capacity | 3 to 10 times of the most value about the specimen damage |
| Unit | g,kg,N,KN,LB( switchover free) |
| Operation method | Operation method |
| Resolution | 1/100,000 |
| Accuracy | ≤0.5% |
| Testing speed | 1~500mm/min |
| 1~500mm/min | 400,500,600mm(Height can be customed) |
| Test width | 40cm(can be changed by customer needs) |
| Test space | (L×W×H)40×40×70cm |
| Motor | Panasonic servo motor |
| Kind of drive | high-precision ball screw |
| Dimension | (W×D×H)1200×600×1500mm |
| Weight | 200kg |
| Power | 1φ,220V/50Hz |
| Rate of work | 0.4KW(depend on motor model) |
| Clamp | customize by customer needs(tensile and compressive clamp) |
Features:
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the
high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole
which improve loading efficience and structure rigidity.
2. Use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise.
The accuracy of speed can be controled in 2%.
3. That Using the business computer as the main control mathine plus the special testing software of our
campany can conduct all of testing parameter, work state, collecting data&analysis, result display and
printing output.
4. Have steady performace, high accuracy, powerful software function and easy operation.
5. Use double insulated glass, user-friendly observing test; Adopt stainless steel frame and bladder,
not only beauty but corrosion resistance.
Temperature control system
| Temperature range | -40°C~150°C |
| Temperature method | computer P.I.D.automatic control |
| Humidity range | Humidity range |
| Stability of control | Stability of control |
| Accuracy of distribution | ±3%RH,±1°C |
| Temperature&humidity control | Korea TEMI880 |
| Circulatory System | Wind forced circulation |
| Heating System | SUS#304, stainless steel heater |
| Humidifying System | Surface evaporation, a transparent structure |
| Cooling system | Fan cooling mode, high efficiency of all sealed compressor |
| Dehumidifying System | Freezing latent heat dehumidification mode |
| Internal&external material | SUS#304 |
| Inner dimension | (L×W×H)40×40×70cm can customize |
Product Tags:
|
|

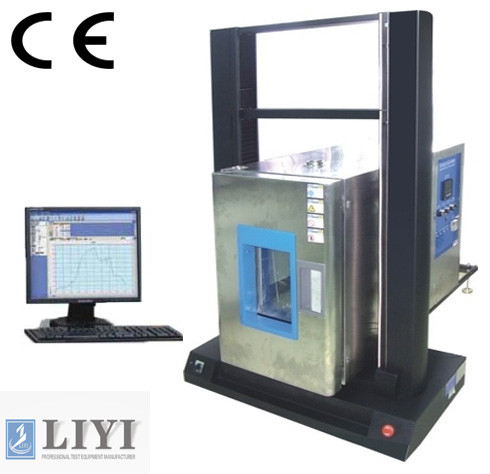

High And Low Temperature Universal Testing Machine For Adhesive Material Images
|
