High Accuracy Rubber Testing Machine Eletronic Rotating viscometer

Name: High Accuracy Rubber Testing Machine Eletronic Rotating viscometer
Brand: LIYI
Price: 1 USD

Brand Name : LIYI

Model Number : CH1506N

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1

Price : US $1,000 - 1,500 / Set

Payment Terms : Western Union, L/C, T/T

Supply Ability : 100 set per month

Packaging Details : Standard export package

Dimension : 75 * 150 mm (diameter * depth)

Temperature range : RT + 15 ~ 150

Capacity : 6 L

Pump flow : 10 L

Usage : Viscosity tester

Temperature fluctuation : ± 0.05 ℃

Resolution : 0.1 ℃

Certificate : CE ISO

Name : High Accuracy Rubber Testing Machine Eletronic Rotating viscometer

Contact Now

High Accuracy Rubber Testing Machine Eletronic Rotating viscometer

Characteristics:

1. Rotational Digital Viscometer use 16 unit microprocessor core to control electric, gearless running.

2. Blue screen LCD digital display. Can directly display viscosity, rotate speed, centigrade meter torque,

rotor number

and fathomable max viscosity at current condition.

3. Equiped with RS232 standard output interface.

4. Rotational Digital Viscometer Meet the advanced technology of teh same product overseas

(RTD temperature probe

is optional parts).

The parameter

Rotator specification	1#,2#,3#,4# (0# optional)
Measuring range	(NDJ-5S)10mPa.s~1x10^5mPa.s;0(NDJ-8S)10mPa.s~2x10^6mPa.s
Measurement error	±5%
Rotate speed	0.3,0.6,1.5,3,6,12,30,60r/min
Features	Eletronic Rotating viscometer has the advantage of high accuracy, stable digital display, easy to operate and good anti-interference. It is widely used in the measurement of viscosity of various kinds of fluid such as grease, paints, food, medicine, adhesive and cosmetics. Etc. It can also be used to determine the viscosity resistance and absolute viscosity of the liquids.

Specifications:

Model	CH1006N	CH1506N	CH2006N	CH3006N
Temperature range	RT+10 ~ 100 °C	RT+15~150 °C	RT+20~200 °C	RT+30~300 °C
Temperature fluctuation	± 0.05 °C(water or ≤ 50mPa.s low viscosity silicone oil)
Temperature control mode	Microcomputer control, PID adjustment
Displaying resolution	0.1°C
Inner volume	6 L
Dimension	Φ75 * 150mm (diameter * depth)
Liquid level protection device	yes	no
Pump cycling method	Out cycle	Inner cycle
Pump flow	10 L (adjustable)
Rate of work	1.5 (KW)	1.8 (KW)
Outer dimension	190 * 340 * 365mm (L * W * D)

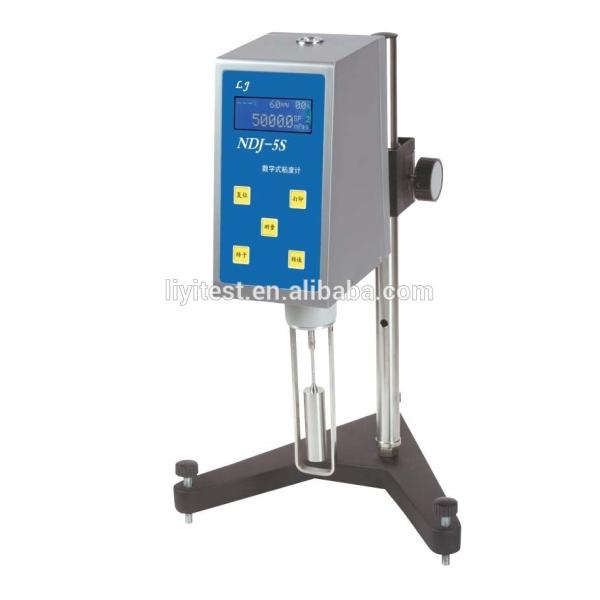

Pictures:

High Accuracy Rubber Testing Machine Eletronic Rotating viscometer
